OUR PRODUCTS |
 |
|
Cofi
transformer models are TRW, TRJ, TRK, TRH, TRL, TRZ, TRE, TRS, TRG
ELECTRONIC IGNITION TRANSFORMERS TRW1P2, TRW1P2R,
TRW1P4, TRW1P4R, TRW1S2M, TRW1S4, TRW2P2, TRW2P4, TRW2P4R
This transformer is produced with the electronic technology, the
system is vacuum impregnated to ensure the highest rate of
insulation. The features of this transformer make it suitable for
gas and oil burners where is required continuous power, with smaller
size and weight than conventional inductive transformers.
The Application : The electronic ignition transformer
is suitable to be applied to all kind of oil and gas burners, wall
hang boilers, hot water high pressure cleaners and anti-mosquito
equipment.
|
| |
|
 |
Electronic Ignition Transformer TRW: This Ignition
transformer is built to satisfy the po-wer requirement of condensing
and atmospheric boilers. Thanks to its particular electronic
configura-tion it delivers a very high power output to ensure the
ignition even on most difficult conditions. This product is
available as ?over the gas valve? mounting version. The integrated
single pole flame detection signal is available.
Type of TRW Transformers
Transformer TRW1P2
Transformer TRW1P2R
Transformer TRW1P4
Transformer TRW1P4R
Transformer TRW1S2M
Transformer TRW1S4
Transformer TRW2P2
Transformer TRW2P4
Transformer TRW2P4R |
| |
|
 |
| |
|
|

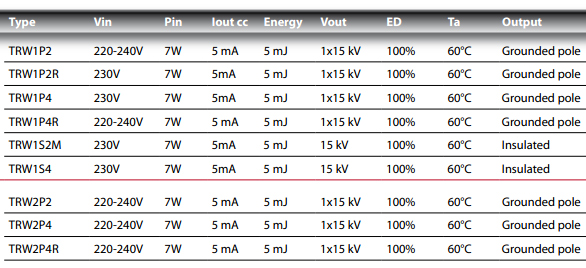

TRW1P2 220-240V 7W 5 mA 5 mJ 1x15 kV
100% 60?C Grounded pole
TRW1P2R 230V 7W 5mA 5 mJ 1x15 kV 100%
60?C Grounded pole
TRW1P4 230V 7W 5mA 5 mJ 1x15 kV 100%
60?C Grounded pole
TRW1P4R 220-240V 7W 5 mA 5 mJ 1x15 kV
100% 60?C Grounded pole
TRW1S2M 230V 7W 5mA 5 mJ 15 kV 100%
60?C Insulated
TRW1S4 230V 7W 5mA 5 mJ 15 kV 100% 60?C
Insulated
TRW2P2 220-240V 7W 5 mA 5 mJ 1x15 kV
100% 60?C Grounded pole
TRW2P4 220-240V 7W 5 mA 5 mJ 1x15 kV
100% 60?C Grounded pole
TRW2P4R 220-240V 7W 5 mA 5 mJ 1x15 kV
100% 60?C Grounded pole |
| |
|
|
 |
 |
|
